'Fairfield University- School of Engineering (Master of Science in Software Engineering)

'Guillermo Julca

'SW506- Assignment 4

'Spring 2006

'***********************************************************************************************

Assignment

In this Assignment, you will REDO ASSIGNMEN2 TO USE XML WEB SERVICES AND ADO.NETand develop your own user defined control called ZipCodeLookup. When placed on a Windows Form, it displays three labels and textboxes. The first label/Textbox asks for input from the user for a valid US Zip Code. Upon entering the zipcode, the control automatically fills in the other two label/textboxes with City and State information corresponding to the zip code.

§ Prepare two projects within one blank solution

· Windows User Control: ZipCodeLookup:

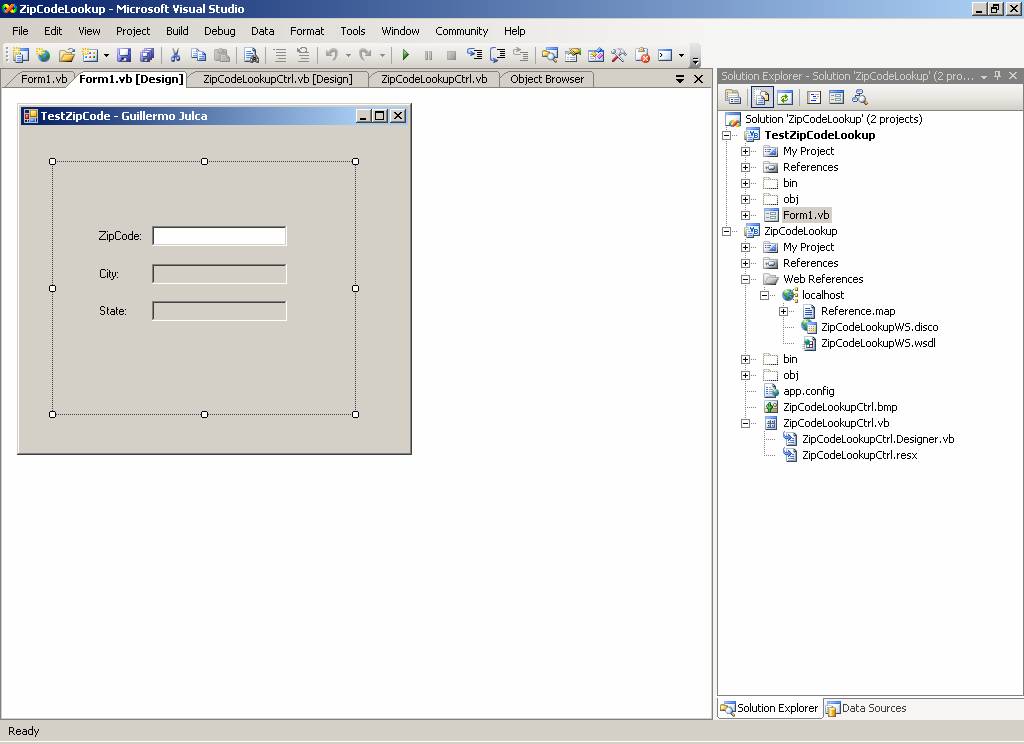

· Windows Application : TestZipCodeLookup Add User Control on to Toolbox under My User Controls so you can drag it on to the form. Remember to add your name to the caption of the form.

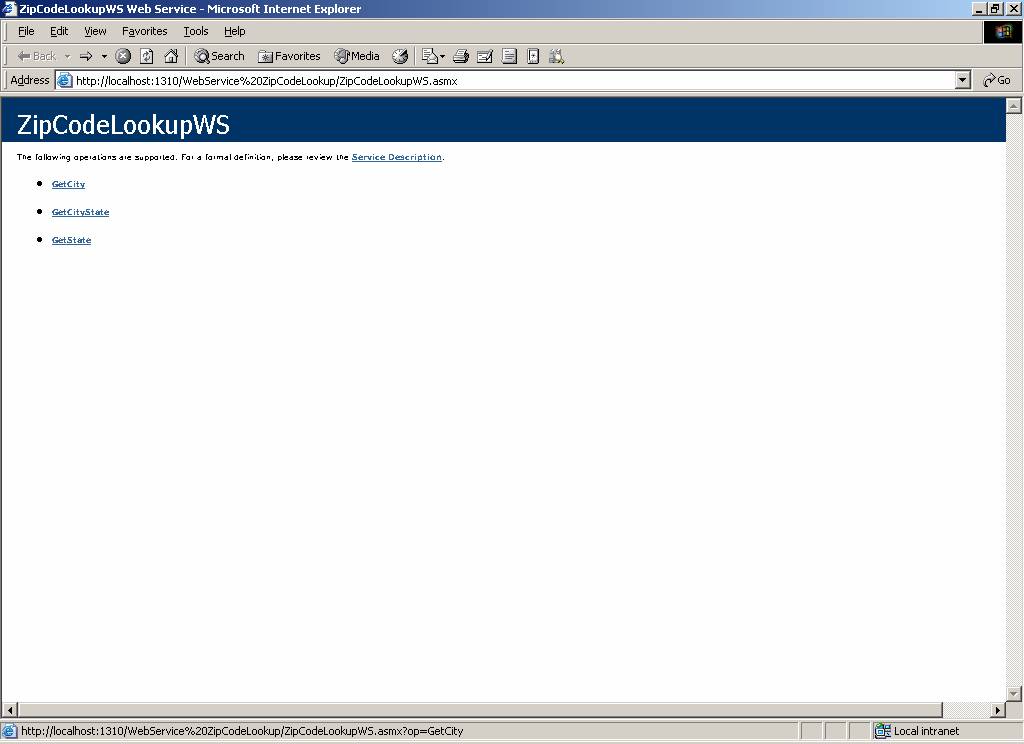

· Web Service : ZipCodeLookupWS with 3 Public Methods

o GetCity (byval strZipCode as string) as string, returns city

o GetState (byval strZipCode as string) as string, returns state

o GetCityState (byval strZipCode as string) as string, returns comma separated list of city, state

§ How will you figure our city/state for each zip code.

· I want you to use an XML WEB SERVICE

· When a zipcode is entered, Invoke the appropriate method on the web service to obtain the result.

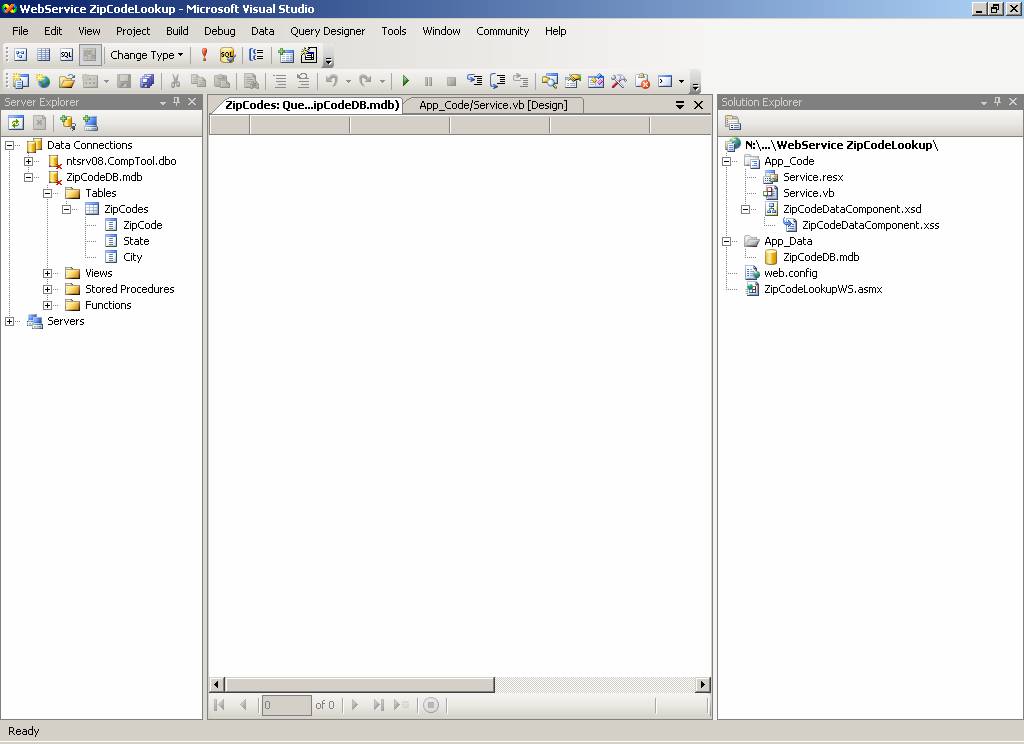

· Inside the Web Service, make sure you access the Access MDB file using ADO.Net to search for the City/State corresponding to the ZipCode provided. Use the following MDB file's data as your source.

· FOR THIS ASSIGNMENT, USE ALL ZIPCODES .

· FOR THIS ASSIGNMENT, your Web Service is on the same machine, however the code should work even if placed on a different, public IP addressable machine. .

§ Additional Restrictions

Here are some additional requirements, before you steal somebody else's code and use it in your assignment.

· The Zip Code Textbox will only accept NUMERIC ENTRIES, 0 to 9 alone

· The Zip Code Textbox will only accept 5 numeric entries

· The other two text boxes cannot be "edited". Their contents can be selected and copied to clipboard but not changed.

· The ZipCodeLookup control will have a custom "bitmap" associated with that is visible in the Toolbox.

The Deliverables

Both, hardcopy and floppy disk!

'*************************************************************************************************************

Imports System.Web

Imports System.Web.Services

Imports System.Web.Services.Protocols

Imports System.Data

<WebService(Namespace:="http://localhost/Service")> _

<WebServiceBinding(ConformsTo:=WsiProfiles.BasicProfile1_1)> _

<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _

Public Class ZipCodeLookupWS

Inherits System.Web.Services.WebService

'This method will pass a Zip Code as value parameter and will use the local MDB file data

'to return corresponding city name for that specific zip code.

<WebMethod()> _

Public Function GetCity(ByVal strZipCode As String) As String

Dim strCity As String

Dim aConnection As OleDb.OleDbConnection = New OleDb.OleDbConnection("Provider=Microsoft.Jet.OLEDB.4.0;Data Source=|DataDirectory|\ZipCodeDB.mdb")

Dim strSQL As String

strSQL = "select City from Zipcodes where Zipcode = " & "'" & strZipCode & "'"

Dim aCommand As OleDb.OleDbCommand = New OleDb.OleDbCommand(strSQL, aConnection)

aConnection.Open()

Dim aReader As OleDb.OleDbDataReader = aCommand.ExecuteReader(CommandBehavior.CloseConnection)

strCity = ""

While aReader.Read

strCity = aReader.GetValue(0).ToString

End While

'aReader.Close()

aConnection.Close()

Return strCity

End Function

'This method will pass a Zip Code as value parameter and will use the local MDB file data

'to return corresponding state name for that specific zip code.

<WebMethod()> _

Public Function GetState(ByVal strZipCode As String) As String

Dim strState As String

Dim aConnection As OleDb.OleDbConnection = New OleDb.OleDbConnection("Provider=Microsoft.Jet.OLEDB.4.0;Data Source=|DataDirectory|\ZipCodeDB.mdb")

Dim strSQL As String

strSQL = "select State from Zipcodes where Zipcode = " & "'" & strZipCode & "'"

Dim aCommand As OleDb.OleDbCommand = New OleDb.OleDbCommand(strSQL, aConnection)

aConnection.Open()

Dim aReader As OleDb.OleDbDataReader = aCommand.ExecuteReader()

strState = ""

While aReader.Read

strState = aReader.GetValue(0).ToString

End While

aReader.Close()

aConnection.Close()

Return strState

End Function

'This method will pass a Zip Code as value parameter and will use the local MDB file data

'to return corresponding comma separated list of city,state for that specific zip code.

<WebMethod()> _

Public Function GetCityState(ByVal strZipCode As String) As String

Dim strCityState As String

Dim aConnection As OleDb.OleDbConnection = New OleDb.OleDbConnection("Provider=Microsoft.Jet.OLEDB.4.0;Data Source=|DataDirectory|\ZipCodeDB.mdb")

Dim strSQL As String

strSQL = "select State,City from Zipcodes where Zipcode = " & "'" & strZipCode & "'"

Dim aCommand As OleDb.OleDbCommand = New OleDb.OleDbCommand(strSQL, aConnection)

aConnection.Open()

Dim aReader As OleDb.OleDbDataReader = aCommand.ExecuteReader()

strCityState = ""

While aReader.Read

strCityState = aReader.GetValue(0).ToString & "," & aReader.GetValue(1).ToString

End While

aReader.Close()

aConnection.Close()

Return strCityState

End Function

End Class

'Fairfield University

'Guillermo Julca

'SW506- Assignment 4

'Spring 2006

Public Class Form1

'This windows app will test our "ZipCodeLookup" windows control

'Library Project.

End Class

'Fairfield University

'Guillermo Julca

'SW506- Assignment 4

'Spring 2006

<ToolboxBitmap(GetType(ZipCodeLookupCtrl), "ZipCodeLookupCtrl")> _

Public Class ZipCodeLookupCtrl

Private blnIsNumericEntry As Boolean

Private blnIsZipCodeLenLessThan6 As Boolean

Private blnIsZipCodeLenEqualTo5 As Boolean

Private Sub txtZipCode_KeyDown(ByVal sender As Object, ByVal e As System.Windows.Forms.KeyEventArgs) Handles txtZipCode.KeyDown

' Handle the KeyDown event to determine the type of character entered into the txtZipCode control.

' Determine whether the keystroke is a number from the keypad Or

' Determine whether the keystroke is a number from the top of the keyboard Or

' Determine whether the keystroke is a backspace.

If (e.KeyCode >= Keys.NumPad0 And e.KeyCode <= Keys.NumPad9) _

Or (e.KeyCode >= Keys.D0 And e.KeyCode <= Keys.D9) _

Or (e.KeyCode = Keys.Back) _

Then

' A numerical keystroke was pressed.

' Set the flag(blnIsNumericEntry) to true and evaluate in KeyPress event.

blnIsNumericEntry = True

Else

' A non-numerical keystroke was pressed.

' Set the flag(blnIsNumericEntry) to False and evaluate in KeyPress event.

blnIsNumericEntry = False

End If

' Handle the KeyDown event to determine if the length of the txtZipCode control

' is not greater than 5 digits.

If (sender.TextLength <= 4) Then

blnIsZipCodeLenLessThan6 = True

If (sender.TextLength = 4) _

And (e.KeyCode <> Keys.Back) Then

blnIsZipCodeLenEqualTo5 = True

Else

blnIsZipCodeLenEqualTo5 = False

End If

Else

If (e.KeyCode = Keys.Back) Then

blnIsZipCodeLenLessThan6 = True

blnIsZipCodeLenEqualTo5 = False

Else

blnIsZipCodeLenLessThan6 = False

End If

End Sub

' The KeyPress event occurs after the KeyDown event and we will use

' to prevent non-numerical characters from entering the txtZipCode control.

Private Sub txtZipCode_KeyPress(ByVal sender As Object, ByVal e As System.Windows.Forms.KeyPressEventArgs) Handles txtZipCode.KeyPress

' Check for the flag being set in the KeyDown event.

If blnIsNumericEntry = False _

Or blnIsZipCodeLenLessThan6 = False Then

' Stop the character from being entered into the txtZipCode

' control since it is non-numerical or it has a size greater than 5 digits.

e.Handled = True

End If

End Sub

'The KeyUp event occurs when a key is released while the txtZipCode control has focus.

Private Sub txtZipCode_KeyUp(ByVal sender As System.Object, ByVal e As System.Windows.Forms.KeyEventArgs) Handles txtZipCode.KeyUp

If (blnIsNumericEntry) _

And (blnIsZipCodeLenLessThan6 = True) _

And (blnIsZipCodeLenEqualTo5 = True) _

Then

'To call subroutine that will assign the City and State value for a specific

'Zipcode target value for the corresponding "txtCity" and "txtState" text boxes

GetCityAndStateForZipCodeTarget()

End If

If (blnIsZipCodeLenEqualTo5 = False) Then

'To reset the values for the "txtCity" and "txtState" text boxes

txtCity.Text = ""

txtState.Text = ""

End If

End Sub

Private Sub ZipCodeLookupCtrl_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

End Sub

Private Sub GetCityAndStateForZipCodeTarget()

'This subroutine will assign the City and State value for a specific

'Zipcode target value for the corresponding "txtCity" and "txtState" text boxes

Dim strZipCodeTarget As String

Dim strCity As String

Dim strSate As String

Dim strCitySate As String

'Consuming the Service

Dim ws As New localhost.ZipCodeLookupWS

'To get ZipCode Target

strZipCodeTarget = Trim(txtZipCode.Text)

'To invoke the WebMethods implemented in the web server

strCity = ws.GetCity(strZipCodeTarget)

strSate = ws.GetState(strZipCodeTarget)

strCitySate = ws.GetCityState(strZipCodeTarget)

txtCity.Text = strCity

txtState.Text = strSate

End Sub

End Class

‘*****************************************************************************************************************

<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _

Partial Class ZipCodeLookupCtrl

Inherits System.Windows.Forms.UserControl

'UserControl1 overrides dispose to clean up the component list.

<System.Diagnostics.DebuggerNonUserCode()> _

Protected Overrides Sub Dispose(ByVal disposing As Boolean)

If disposing AndAlso components IsNot Nothing Then

components.Dispose()

End If

MyBase.Dispose(disposing)

End Sub

'Required by the Windows Form Designer

Private components As System.ComponentModel.IContainer

'NOTE: The following procedure is required by the Windows Form Designer

'It can be modified using the Windows Form Designer.

'Do not modify it using the code editor.

<System.Diagnostics.DebuggerStepThrough()> _

Private Sub InitializeComponent()

Me.lblZipCode = New System.Windows.Forms.Label

Me.lblCity = New System.Windows.Forms.Label

Me.lblState = New System.Windows.Forms.Label

Me.txtZipCode = New System.Windows.Forms.TextBox

Me.txtCity = New System.Windows.Forms.TextBox

Me.txtState = New System.Windows.Forms.TextBox

Me.SuspendLayout()

'lblZipCode

Me.lblZipCode.AutoSize = True

Me.lblZipCode.Location = New System.Drawing.Point(42, 66)

Me.lblZipCode.Name = "lblZipCode"

Me.lblZipCode.Size = New System.Drawing.Size(50, 13)

Me.lblZipCode.TabIndex = 0

Me.lblZipCode.Text = "ZipCode:"

'lblCity

Me.lblCity.AutoSize = True

Me.lblCity.Location = New System.Drawing.Point(42, 104)

Me.lblCity.Name = "lblCity"

Me.lblCity.Size = New System.Drawing.Size(27, 13)

Me.lblCity.TabIndex = 1

Me.lblCity.Text = "City:"

'lblState

Me.lblState.AutoSize = True

Me.lblState.Location = New System.Drawing.Point(42, 141)

Me.lblState.Name = "lblState"

Me.lblState.Size = New System.Drawing.Size(35, 13)

Me.lblState.TabIndex = 2

Me.lblState.Text = "State:"

'txtZipCode

Me.txtZipCode.Location = New System.Drawing.Point(98, 63)

Me.txtZipCode.Name = "txtZipCode"

Me.txtZipCode.Size = New System.Drawing.Size(135, 20)

Me.txtZipCode.TabIndex = 3

'txtCity

Me.txtCity.BackColor = System.Drawing.SystemColors.Control

Me.txtCity.Location = New System.Drawing.Point(98, 101)

Me.txtCity.Name = "txtCity"

Me.txtCity.ReadOnly = True

Me.txtCity.Size = New System.Drawing.Size(135, 20)

Me.txtCity.TabIndex = 4

'txtState

Me.txtState.Location = New System.Drawing.Point(98, 138)

Me.txtState.Name = "txtState"

Me.txtState.ReadOnly = True

Me.txtState.Size = New System.Drawing.Size(135, 20)

Me.txtState.TabIndex = 5

'ZipCodeLookupCtrl

Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)

Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font

Me.Controls.Add(Me.txtState)

Me.Controls.Add(Me.txtCity)

Me.Controls.Add(Me.txtZipCode)

Me.Controls.Add(Me.lblState)

Me.Controls.Add(Me.lblCity)

Me.Controls.Add(Me.lblZipCode)

Me.MinimumSize = New System.Drawing.Size(250, 200)

Me.Name = "ZipCodeLookupCtrl"

Me.Size = New System.Drawing.Size(300, 250)

Me.ResumeLayout(False)

Me.PerformLayout()

End Sub

Friend WithEvents lblZipCode As System.Windows.Forms.Label

Friend WithEvents lblCity As System.Windows.Forms.Label

Friend WithEvents lblState As System.Windows.Forms.Label

Friend WithEvents txtZipCode As System.Windows.Forms.TextBox

Friend WithEvents txtCity As System.Windows.Forms.TextBox

Friend WithEvents txtState As System.Windows.Forms.TextBox

End Class
