MSSE Fairfield University – School of Engineering – Master of Science in Software Engineering (MSSE)

'SW-403 Final Exam

'GUILLERMO JULCA

'Click here to get the Final Exam (PDF format)

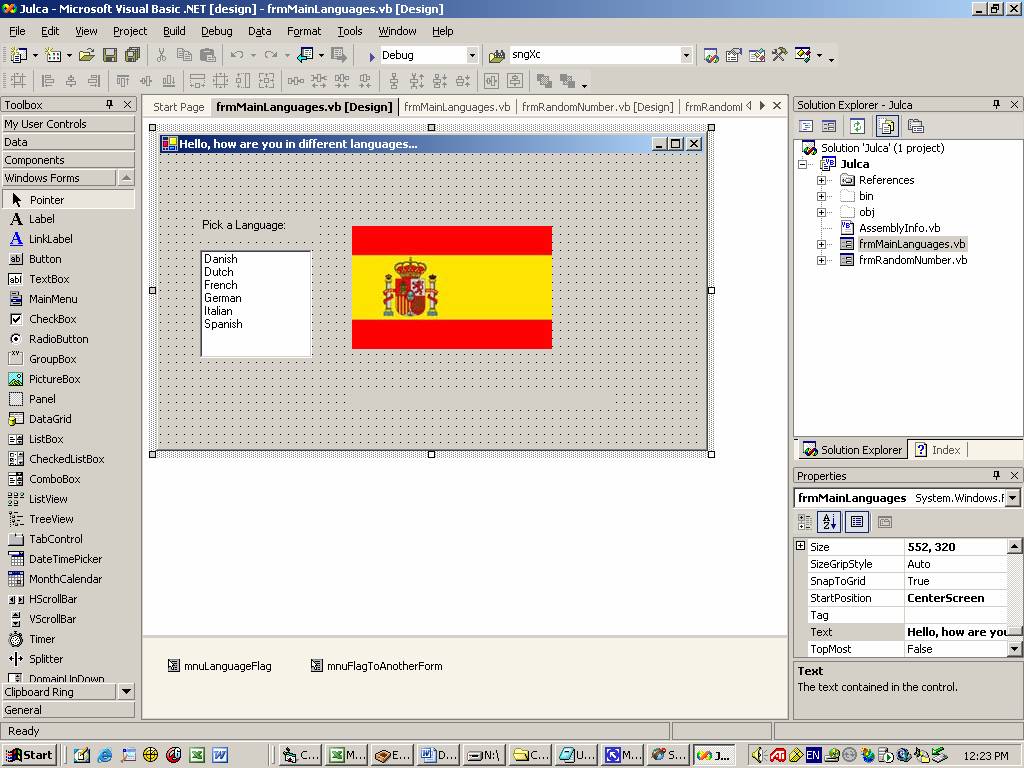

Public Class frmMainLanguages

    Inherits System.Windows.Forms.Form

    Dim arrPhrases(5) As String     'Static Global array to store the phrases for the different languages

    Dim arrFlags(5) As String       'Static array to store the name of the files for the different countries flags



#Region " Windows Form Designer generated code "



    Public Sub New()

        MyBase.New()



        'This call is required by the Windows Form Designer.

        InitializeComponent()



        'Add any initialization after the InitializeComponent() call



    End Sub



    'Form overrides dispose to clean up the component list.

    Protected Overloads Overrides Sub Dispose(ByVal disposing As Boolean)

        If disposing Then

            If Not (components Is Nothing) Then

                components.Dispose()

            End If

        End If

        MyBase.Dispose(disposing)

    End Sub



    'Required by the Windows Form Designer

    Private components As System.ComponentModel.IContainer



    'NOTE: The following procedure is required by the Windows Form Designer

    'It can be modified using the Windows Form Designer.

    'Do not modify it using the code editor.

    Friend WithEvents lstCountries As System.Windows.Forms.ListBox

    Friend WithEvents Label1 As System.Windows.Forms.Label

    Friend WithEvents lblDisplaySentence As System.Windows.Forms.Label

    Friend WithEvents pctShowFlag As System.Windows.Forms.PictureBox

    Friend WithEvents mnuLanguageFlag As System.Windows.Forms.ContextMenu

    Friend WithEvents mnuFlagPhraseInvisible As System.Windows.Forms.MenuItem

    Friend WithEvents mnuFlagToAnotherForm As System.Windows.Forms.ContextMenu

    Friend WithEvents MenuItem1 As System.Windows.Forms.MenuItem

    <System.Diagnostics.DebuggerStepThrough()> Private Sub InitializeComponent()

        Dim resources As System.Resources.ResourceManager = New System.Resources.ResourceManager(GetType(frmMainLanguages))

        Me.lstCountries = New System.Windows.Forms.ListBox

        Me.Label1 = New System.Windows.Forms.Label

        Me.lblDisplaySentence = New System.Windows.Forms.Label

        Me.pctShowFlag = New System.Windows.Forms.PictureBox

        Me.mnuFlagToAnotherForm = New System.Windows.Forms.ContextMenu

        Me.MenuItem1 = New System.Windows.Forms.MenuItem

        Me.mnuLanguageFlag = New System.Windows.Forms.ContextMenu

        Me.mnuFlagPhraseInvisible = New System.Windows.Forms.MenuItem

        Me.SuspendLayout()

        '

        'lstCountries

        '

        Me.lstCountries.Items.AddRange(New Object() {"Danish", "Dutch", "French", "German", "Italian", "Spanish"})

        Me.lstCountries.Location = New System.Drawing.Point(40, 96)

        Me.lstCountries.Name = "lstCountries"

        Me.lstCountries.Size = New System.Drawing.Size(112, 108)

        Me.lstCountries.TabIndex = 0

        '

        'Label1

        '

        Me.Label1.Location = New System.Drawing.Point(40, 64)

        Me.Label1.Name = "Label1"

        Me.Label1.Size = New System.Drawing.Size(120, 24)

        Me.Label1.TabIndex = 1

        Me.Label1.Text = "Pick a Language:"

        '

        'lblDisplaySentence

        '

        Me.lblDisplaySentence.Font = New System.Drawing.Font("Microsoft Sans Serif", 9.75!, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, CType(0, Byte))

        Me.lblDisplaySentence.ForeColor = System.Drawing.Color.Blue

        Me.lblDisplaySentence.Location = New System.Drawing.Point(192, 240)

        Me.lblDisplaySentence.Name = "lblDisplaySentence"

        Me.lblDisplaySentence.Size = New System.Drawing.Size(264, 16)

        Me.lblDisplaySentence.TabIndex = 2

        '

        'pctShowFlag

        '

        Me.pctShowFlag.ContextMenu = Me.mnuFlagToAnotherForm

        Me.pctShowFlag.Image = CType(resources.GetObject("pctShowFlag.Image"), System.Drawing.Image)

        Me.pctShowFlag.Location = New System.Drawing.Point(192, 72)

        Me.pctShowFlag.Name = "pctShowFlag"

        Me.pctShowFlag.Size = New System.Drawing.Size(200, 128)

        Me.pctShowFlag.TabIndex = 3

        Me.pctShowFlag.TabStop = False

        '

        'mnuFlagToAnotherForm

        '

        Me.mnuFlagToAnotherForm.MenuItems.AddRange(New System.Windows.Forms.MenuItem() {Me.MenuItem1})

        '

        'MenuItem1

        '

        Me.MenuItem1.Index = 0

        Me.MenuItem1.Text = "Go to Random Windows Form"

        '

        'mnuLanguageFlag

        '

        Me.mnuLanguageFlag.MenuItems.AddRange(New System.Windows.Forms.MenuItem() {Me.mnuFlagPhraseInvisible})

        '

        'mnuFlagPhraseInvisible

        '

        Me.mnuFlagPhraseInvisible.Index = 0

        Me.mnuFlagPhraseInvisible.Text = "Make the flag and phrase invisible"

        '

        'frmMainLanguages

        '

        Me.AutoScaleBaseSize = New System.Drawing.Size(5, 13)

        Me.ClientSize = New System.Drawing.Size(544, 293)

        Me.ContextMenu = Me.mnuLanguageFlag

        Me.Controls.Add(Me.pctShowFlag)

        Me.Controls.Add(Me.lblDisplaySentence)

        Me.Controls.Add(Me.Label1)

        Me.Controls.Add(Me.lstCountries)

        Me.Name = "frmMainLanguages"

        Me.StartPosition = System.Windows.Forms.FormStartPosition.CenterScreen

        Me.Text = "Hello, how are you in different languages..."

        Me.ResumeLayout(False)



    End Sub



#End Region



    Private Sub lstCountries_SelectedIndexChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles lstCountries.SelectedIndexChanged

        pctShowFlag.Visible = True

        lblDisplaySentence.Visible = True

        Call DisplayPhrase(lstCountries.SelectedIndex)

        Call DisplayFlag(lstCountries.SelectedIndex)

    End Sub



    Private Sub frmMainLanguages_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

        'To initialize global arrays

        'To initialize array of phrases

        arrPhrases(0) = "Hej, hvordan har du det?"     'Danish

        arrPhrases(1) = "Hello hoe u bent?"            'Dutch

        arrPhrases(2) = "Bonjour comment allez vous?"  'French

        arrPhrases(3) = "Hallo, wie geht es Ihnen?"    'German

        arrPhrases(4) = "Ciao come siete?"             'Italian

        arrPhrases(5) = "¿Hola cómo esta usted?"       'Spanish



        'To initialize array of flag's file names

        arrFlags(0) = "DanishFlag.jpg"

        arrFlags(1) = "DutchFlag.jpg"

        arrFlags(2) = "FrenchFlag.jpg"

        arrFlags(3) = "GermanFlag.jpg"

        arrFlags(4) = "ItalianFlag.jpg"

        arrFlags(5) = "SpanishFlag.jpg"



        'To initialize list box

        lstCountries.SelectedIndex = 5

        'To initialize the picture with the flag for index 5

        pctShowFlag.Image = Image.FromFile(arrFlags(5))

        'To initialize the text file for the phrase with index 5

        lblDisplaySentence.Text = arrPhrases(5)



    End Sub

    Private Sub DisplayPhrase(ByVal intIndex As Integer)

        'Subroutine to display the phrase for the selected country

        Select Case intIndex ' Evaluate intIndex.

            Case 0   ' Danish Phrase

                lblDisplaySentence.Text = arrPhrases(0)

            Case 1  ' Dutch Phrase

                lblDisplaySentence.Text = arrPhrases(1)

            Case 2   ' French Phrase

                lblDisplaySentence.Text = arrPhrases(2)

            Case 3  ' German Phrase

                lblDisplaySentence.Text = arrPhrases(3)

            Case 4   ' Italian Phrase

                lblDisplaySentence.Text = arrPhrases(4)

            Case 5  ' Spanish Phrase

                lblDisplaySentence.Text = arrPhrases(5)

        End Select

    End Sub



    Private Sub DisplayFlag(ByVal intIndex As Integer)

        'Subroutine to display the flag for the selected country

        Select Case intIndex ' Evaluate intIndex.

            Case 0   ' Danish Flag

                pctShowFlag.Image = Image.FromFile(arrFlags(0))

            Case 1  ' Dutch Flag

                pctShowFlag.Image = Image.FromFile(arrFlags(1))

            Case 2   ' French Flag

                pctShowFlag.Image = Image.FromFile(arrFlags(2))

            Case 3  ' German Flag

                pctShowFlag.Image = Image.FromFile(arrFlags(3))

            Case 4   ' Italian Flag

                pctShowFlag.Image = Image.FromFile(arrFlags(4))

            Case 5  ' Spanish Flag

                pctShowFlag.Image = Image.FromFile(arrFlags(5))

        End Select

    End Sub





    Private Sub mnuFlagPhraseInvisible_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles mnuFlagPhraseInvisible.Click

        'Context Menu to make invisible the flag and phrase

        pctShowFlag.Visible = False

        lblDisplaySentence.Visible = False

    End Sub





    Private Sub MenuItem1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MenuItem1.Click

        'Context menu to bring up the second form with random number generator

        Dim objfrmRandomForm As New frmRandomNumber

        objfrmRandomForm.ShowDialog()

    End Sub

End Class

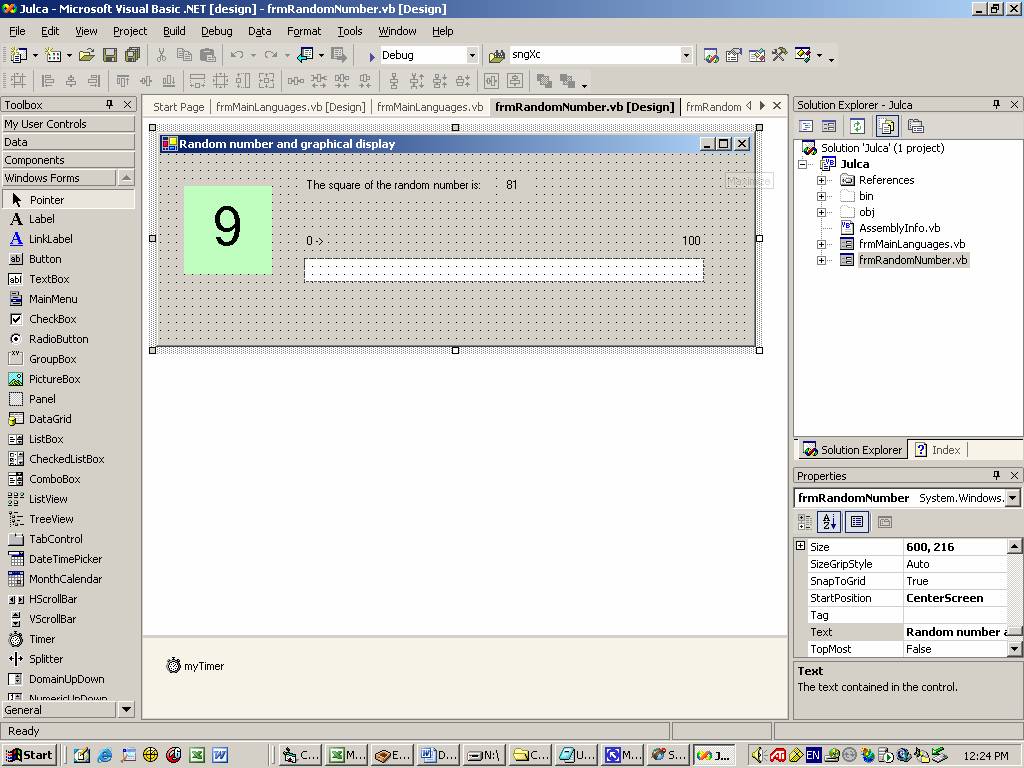

Public Class frmRandomNumber

    Inherits System.Windows.Forms.Form

    Dim intRandomNumber As Integer        'Global variable to store the random number between 1 and 10 generated for the system

    Dim intSquareRandomNumber As Integer  'Global variable to store the square value of the random number

    Dim sngBarWidth As Single             'Global variable to store the Bar width of the square value of the random number

    Dim sngBarHeight As Single            'Global variable to store the Bar height.Note: it should be equal to the panel height



#Region " Windows Form Designer generated code "



    Public Sub New()

        MyBase.New()



        'This call is required by the Windows Form Designer.

        InitializeComponent()



        'Add any initialization after the InitializeComponent() call



    End Sub



    'Form overrides dispose to clean up the component list.

    Protected Overloads Overrides Sub Dispose(ByVal disposing As Boolean)

        If disposing Then

            If Not (components Is Nothing) Then

                components.Dispose()

            End If

        End If

        MyBase.Dispose(disposing)

    End Sub



    'Required by the Windows Form Designer

    Private components As System.ComponentModel.IContainer



    'NOTE: The following procedure is required by the Windows Form Designer

    'It can be modified using the Windows Form Designer.

    'Do not modify it using the code editor.

    Friend WithEvents lblRandomNumber As System.Windows.Forms.Label

    Friend WithEvents Label1 As System.Windows.Forms.Label

    Friend WithEvents lblSquareOfRandomNumber As System.Windows.Forms.Label

    Friend WithEvents myTimer As System.Windows.Forms.Timer

    Friend WithEvents pnlSquareBar As System.Windows.Forms.Panel

    Friend WithEvents Label2 As System.Windows.Forms.Label

    Friend WithEvents Label3 As System.Windows.Forms.Label

    <System.Diagnostics.DebuggerStepThrough()> Private Sub InitializeComponent()

        Me.components = New System.ComponentModel.Container

        Me.lblRandomNumber = New System.Windows.Forms.Label

        Me.Label1 = New System.Windows.Forms.Label

        Me.lblSquareOfRandomNumber = New System.Windows.Forms.Label

        Me.myTimer = New System.Windows.Forms.Timer(Me.components)

        Me.pnlSquareBar = New System.Windows.Forms.Panel

        Me.Label2 = New System.Windows.Forms.Label

        Me.Label3 = New System.Windows.Forms.Label

        Me.SuspendLayout()

        '

        'lblRandomNumber

        '

        Me.lblRandomNumber.BackColor = System.Drawing.Color.FromArgb(CType(192, Byte), CType(255, Byte), CType(192, Byte))

        Me.lblRandomNumber.Font = New System.Drawing.Font("Microsoft Sans Serif", 40.0!, System.Drawing.FontStyle.Regular, System.Drawing.GraphicsUnit.Point, CType(0, Byte))

        Me.lblRandomNumber.Location = New System.Drawing.Point(24, 32)

        Me.lblRandomNumber.Name = "lblRandomNumber"

        Me.lblRandomNumber.Size = New System.Drawing.Size(88, 88)

        Me.lblRandomNumber.TabIndex = 0

        Me.lblRandomNumber.Text = "9"

        Me.lblRandomNumber.TextAlign = System.Drawing.ContentAlignment.MiddleCenter

        '

        'Label1

        '

        Me.Label1.Location = New System.Drawing.Point(144, 24)

        Me.Label1.Name = "Label1"

        Me.Label1.Size = New System.Drawing.Size(192, 24)

        Me.Label1.TabIndex = 1

        Me.Label1.Text = "The square of the random number is:"

        '

        'lblSquareOfRandomNumber

        '

        Me.lblSquareOfRandomNumber.Location = New System.Drawing.Point(344, 24)

        Me.lblSquareOfRandomNumber.Name = "lblSquareOfRandomNumber"

        Me.lblSquareOfRandomNumber.Size = New System.Drawing.Size(32, 24)

        Me.lblSquareOfRandomNumber.TabIndex = 2

        Me.lblSquareOfRandomNumber.Text = "81"

        '

        'myTimer

        '

        '

        'pnlSquareBar

        '

        Me.pnlSquareBar.BackColor = System.Drawing.Color.White

        Me.pnlSquareBar.Location = New System.Drawing.Point(144, 104)

        Me.pnlSquareBar.Name = "pnlSquareBar"

        Me.pnlSquareBar.Size = New System.Drawing.Size(400, 24)

        Me.pnlSquareBar.TabIndex = 3

        '

        'Label2

        '

        Me.Label2.Location = New System.Drawing.Point(144, 80)

        Me.Label2.Name = "Label2"

        Me.Label2.Size = New System.Drawing.Size(24, 16)

        Me.Label2.TabIndex = 4

        Me.Label2.Text = "0 ->"

        '

        'Label3

        '

        Me.Label3.Location = New System.Drawing.Point(520, 80)

        Me.Label3.Name = "Label3"

        Me.Label3.Size = New System.Drawing.Size(24, 16)

        Me.Label3.TabIndex = 5

        Me.Label3.Text = "100"

        '

        'frmRandomNumber

        '

        Me.AutoScaleBaseSize = New System.Drawing.Size(5, 13)

        Me.ClientSize = New System.Drawing.Size(592, 189)

        Me.Controls.Add(Me.Label3)

        Me.Controls.Add(Me.Label2)

        Me.Controls.Add(Me.pnlSquareBar)

        Me.Controls.Add(Me.lblSquareOfRandomNumber)

        Me.Controls.Add(Me.Label1)

        Me.Controls.Add(Me.lblRandomNumber)

        Me.Name = "frmRandomNumber"

        Me.StartPosition = System.Windows.Forms.FormStartPosition.CenterScreen

        Me.Text = "Random number and graphical display"

        Me.ResumeLayout(False)



    End Sub



#End Region



    Private Sub frmRandomNumber_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

        'To initialize the bar height

        sngBarHeight = pnlSquareBar.Height

        Call UpdateObjectsRandomly()

        ' Sets the timer interval to 0.5 second = 500 milliseconds.

        myTimer.Interval = 500

        myTimer.Start()

    End Sub

    Private Sub UpdateObjectsRandomly()

        'Subroutine to generate the random number and its square value

        'This subroutine will use these values to update our objects



        Randomize() ' Initialize random-number generator.

        intRandomNumber = CInt(Int((10 * Rnd()) + 1)) ' Generate random value between 1 and 10.

        lblRandomNumber.Text = CStr(intRandomNumber)

        intSquareRandomNumber = Math.Pow(intRandomNumber, 2) 'To get the square of the random number generated

        lblSquareOfRandomNumber.Text() = CStr(intSquareRandomNumber)



        'To get the bar width randomly in function of the square of the number

        'Using simple math proportions  BarWidth/panelWidth = RandomBarWidth/100

        sngBarWidth = (intSquareRandomNumber / 100) * pnlSquareBar.Width

    End Sub



    Private Sub myTimer_Tick(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles myTimer.Tick

        Call UpdateObjectsRandomly()

        pnlSquareBar.Invalidate()

    End Sub



    Private Sub pnlSquareBar_Paint(ByVal sender As System.Object, ByVal e As System.Windows.Forms.PaintEventArgs) Handles pnlSquareBar.Paint

        Dim myBar As RectangleF

        Dim myBrush As SolidBrush

        'To set our bar rectangle

        myBar = New RectangleF(0, _

                               0, _

                               sngBarWidth, _

                               sngBarHeight)

        'To Draw Bar Rectangle in the panel.

        myBrush = New SolidBrush(Color.Blue)

        e.Graphics.FillRectangle(myBrush, myBar)

    End Sub

End Class
